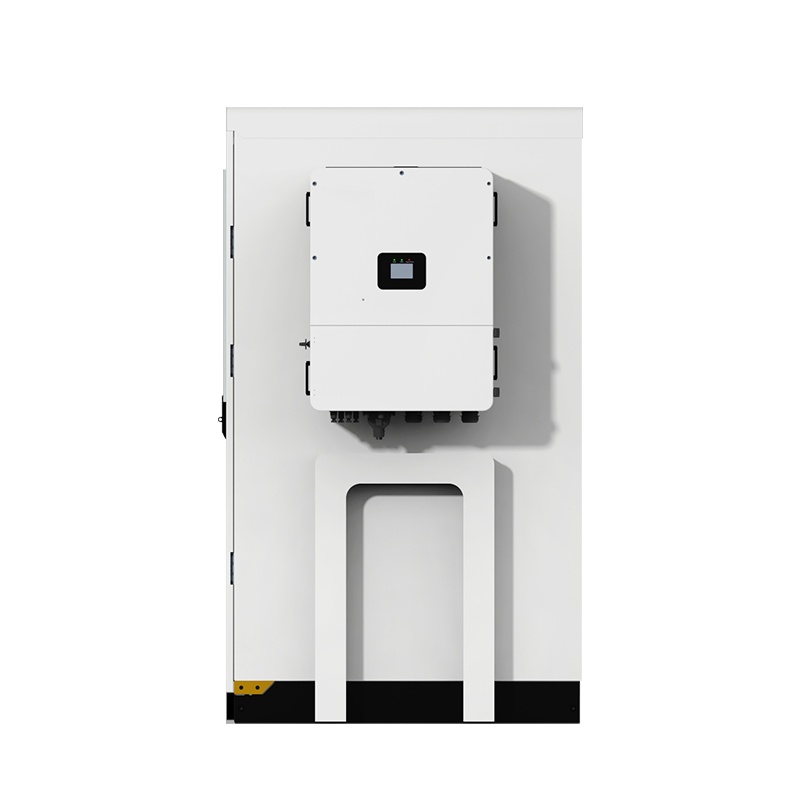

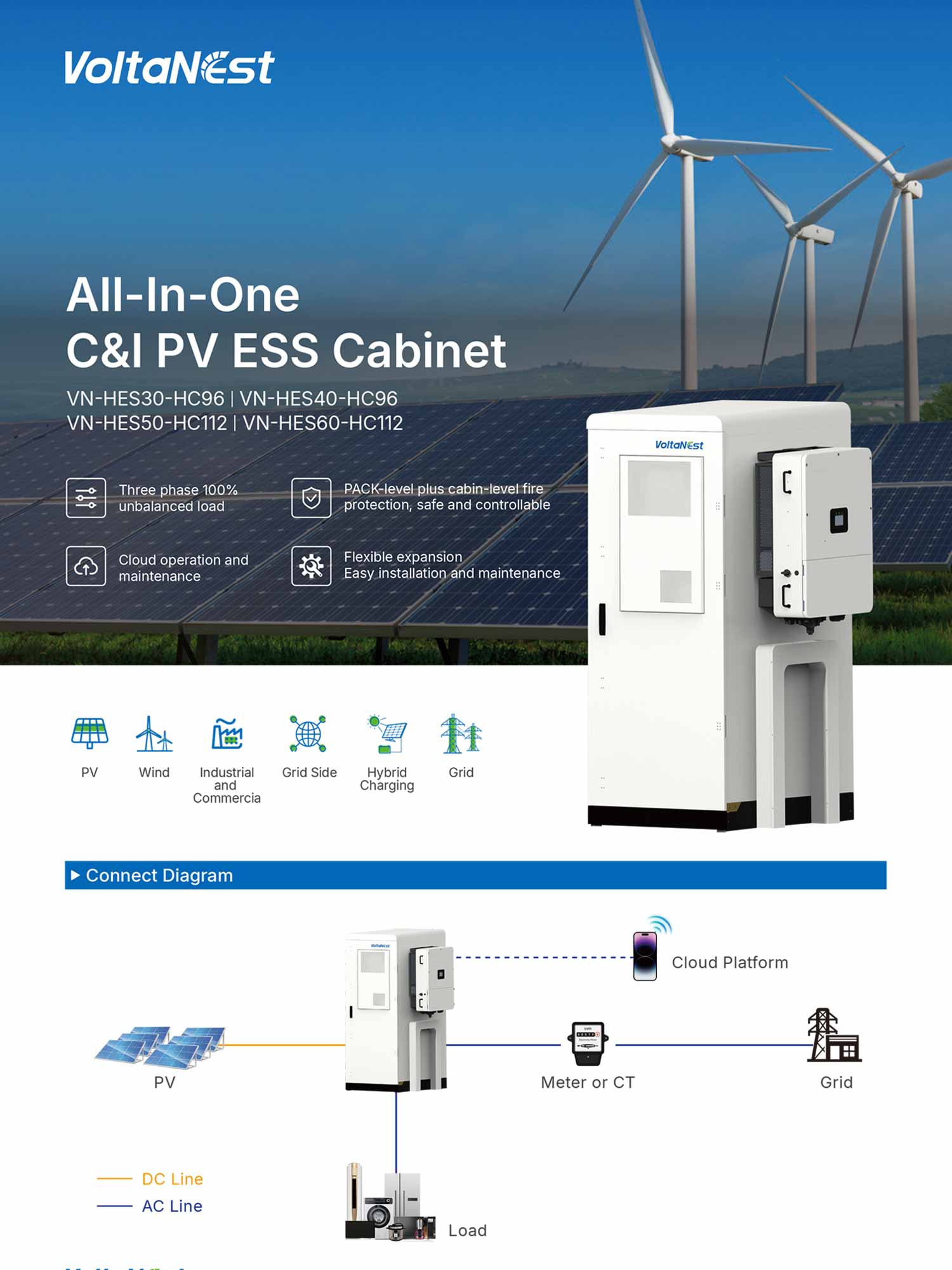

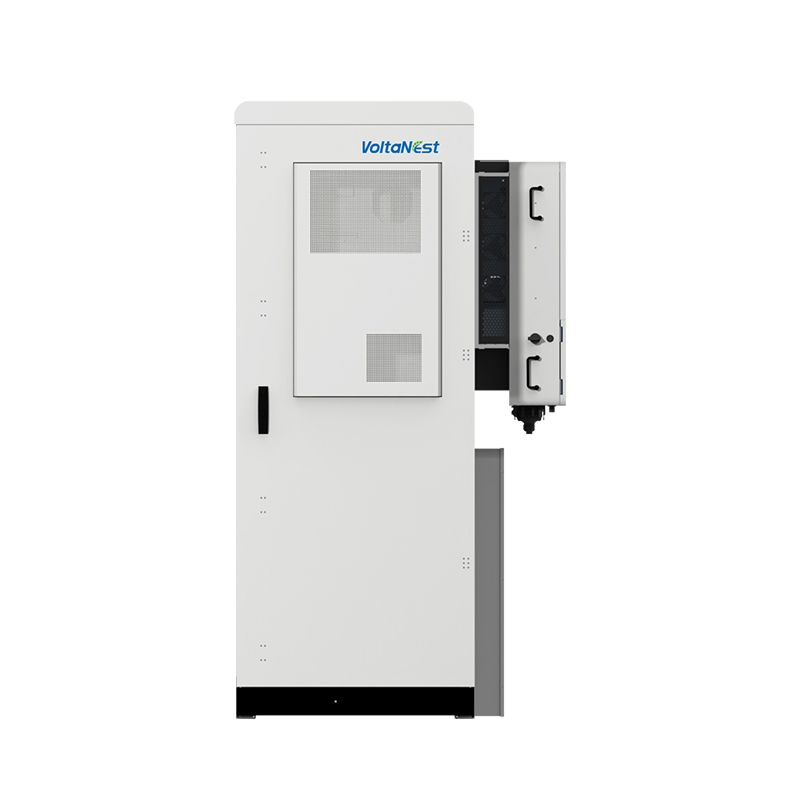

    All In One PV ESS 30kW 40kW 50kW 60kW 96kWh 112kWh Solar Energy Storage System【All-in-One ESS】

    High Capacity: 261kWh energy storage using LiFePO4 batteries
    Powerful Output: 125kW rated power
    Advanced Safety: Integrated fire suppression and comprehensive electrical protection
    Smart Connectivity: Supports RS485, Modbus TCP for seamless integration and monitoring
    Durable Design: IP54 rated enclosure for demanding environments
    Flexible Installation: Suitable for indoor applications
    Reliable Operation: Designed for long-lasting performance and stability

    Inquire Now
    contact us

    Share:

    Product Features

    • Three phase 100%unbalanced load

    • loud Operations

    • Intelligent Dehumidification

    • ntelligent air conditioning cooling system

    • Flexible expansion Easy installation and maintenanc

    Application Scenarios

    Related Data

    ModelVN-HES30-HC96VN-HES40-HC96VN-HES50-HC112VN-HES60-HC112
    System Specification
    Rated Output Power30kW40kW50kW60kW
    System Capacity96.46kWh96.46kWh112.53kWh112.53kWh
    Battery TypeLiFePO4
    Battery Cell3.2V/314Ah
    Connection Method1P96S1P96S1P112S1P112S
    Battery Cluster307.2V/314Ah307.2V/314Ah358.4V/314Ah358.4V/314Ah
    Max. Charging/Discharging Current157A
    Operating Temperature RangeCharge -20~55℃；Discharge 0~55℃
    Cycle Life>8000cycles
    Input（PV）
    Max. Input Power48000Wp64000Wp80000Wp96000Wp
    Max. Input Voltage1100V
    Start-up Voltage200V
    Rated Voltage620V
    MPPT Voltage Range180V-1000V
    Number of MPP Trackers4
    Number of String per MPPT8
    Max. Current per MPPT4*40A
    Max. Short Circuit Current per MPPT4*60A
    Output (On-Grid)
    Rated Output Power30kW40kW50kW60kW
    Max. Output Power33kVA44kVA55kVA66kVA
    Max. Output Current50A66.7A83.4A100A
    Max. Input Power from Grid45kW60kW75kW90kW
    Max. Input Current from Grid68.4A91A113.7A136.4A
    Rated Grid Voltage3 / N / PE, 230 V / 400 Vac
    Rated Grid Frequency50Hz / 60Hz
    THDi(@Rated Power)<3%
    Power Factor0.8 leading ~ 0.8 lagging
    Battery
    Battery TypeLithium
    Battery Voltage Range300V – 850V
    Max. Charge / Discharge Power44kW44kW55kW66kW
    Max. Charge / Discharge Current2*100A
    CommunicationCAN / RS485
    Output (EPS)
    Rated Output Power30kW40kW50kW60kW
    Max. Output Current45.6A60.7A75.8A91A
    Peak Output Power, Time1.5 times / 10s
    Switch Time<10ms
    Rated Voltage3 / N / PE，230V / 400Vac
    Rated Frequency50Hz / 60Hz
    Max.AC passth rough current150A
    Output (Generator)
    Max. Output Power30kW40kW50kW60kW
    Max. Output Current45.6A60.7A75.8A91A
    Rated Voltage3 / N / PE，230V / 400Vac
    Rated Frequency50Hz / 60Hz
    Efficiency
    Max. Efficiency98.40%
    European Efficiency97.50%
    Battery Charge /Discharge Efficiency97.50%
    Protection
    ProtectionDC Switch, DC Reverse Polarity Protection,Anti-islanding Protection,AC Short Circuit Protection, Residual Current Monitoring, Ground Fault Monitoring, Over Current /Voltage Protection, BatteryActive Function, I-V Curve Scan
    Surge ProtectionType II
    AFCl ProtectionOptional
    General Data
    DisplayLCD/LED
    Battery Cabinet Weight850kg1100kg
    Battery Cabinet Dimension800×2080×1210mm800×2312×1210mm
    Inverter Weight92kg
    Inverter Dimension620 x 900 x 300 mm
    OperatingTemperature Range-30 ~ +60℃
    Cooling MethodSmart Air Cooling
    Protection DegreeInverter IP66, Battery Cabinet IP54
    Max. OperatingAltitude4000m
    Relative Humidity0~100%
    Self-consumption<15W
    TopologyTransfomerless
