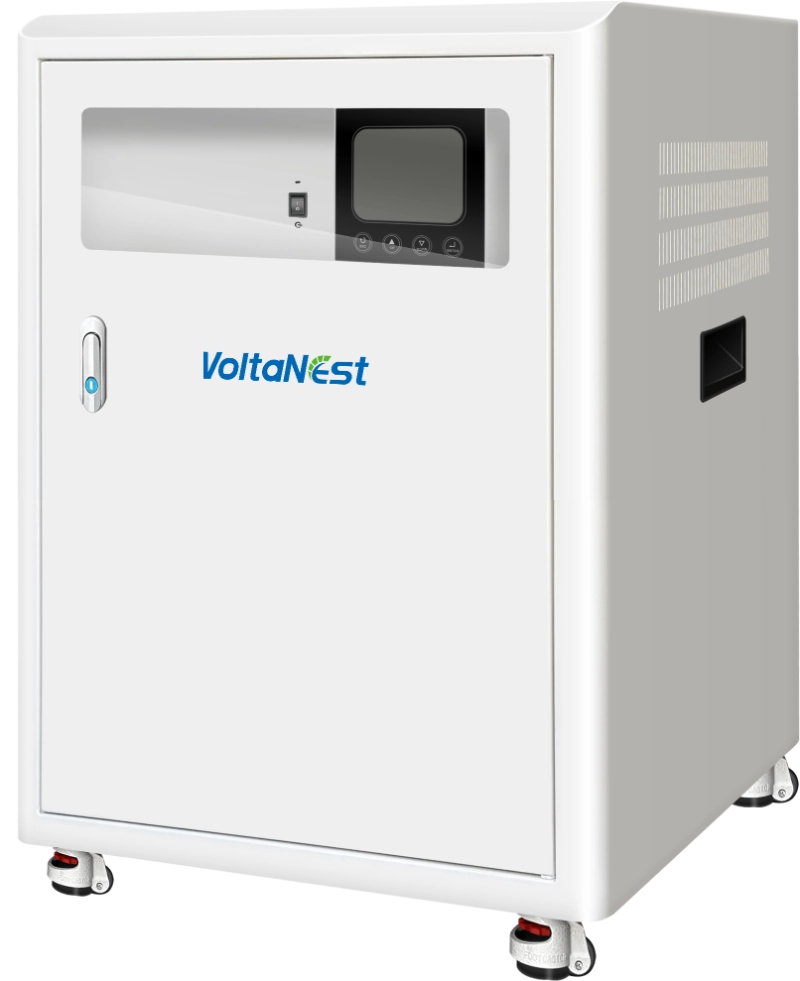

Three Phase 10kW 20kWh 32kWh 48kWh Mobile All In One Solar Energy System

Three Phase 10kW 20kWh 32kWh 48kWh Mobile All In One Solar Energy System【Low Voltage ESS】

All-in-One System: Integrated design, beautiful appearance and scene integration
Maximum output: Three phase 10kW, Max. storage capality 48kWh
More support: Support storing energy from diesel generator
Thermal management: Temperature detection of key parts, cell, power plug-in, etc
Wide temperature operation: The heating function is optional to meet the application scenarios with low temperature and no sense

Model	VN-10KFP3-LM20	VN-10KFP3-LM32	VN-10KP3-LM48
AC Input Parameters
Rated Voltage	230/400Vac,Three Phase
Voltage Range	Single Phase 170-280Vac，Three Phase 305-485V
Frequency	50/60Hz
Bypass Overload Current	29A
AC Output Parameters
Rated Output Power	10000W
Rated Output Voltage	400Vac
Rated Frequency	50/60Hz
Instantaneous Max. Power	20000VA
Battery Parameters
Battery Type	LiFePO4
Battery Capacity	20.48kWh	32.15Wh	48.23kWh
Battery Rated Voltage	51.2V
Discharge Cut-off Voltage	42.4V
Charge Cut-off Voltage	58.4V
Max. Charging Current	220A
PV Input Parameters
Max. PV Power	7500W+7500W
MPPT Voltage Range	200-650V
Open Circuit Voltage	800Vdc
Max. Charging Current	22A+22A
MPPT Quantity	2
System Parameters
On-grid and Off-grid Switching Time	10ms
Output Waveform	Pure Sine Wave
Parallel Quantity	6
Motor Load Capacity	6HP
PV Charging Efficiency	97%
Mains Charging Efficiency	94%
No-load Power Consumption	130W
Overload Protection	<1.1 times, 5min <1.25 times, 10s >1.25 times, 5s
Mechanical Parameters
Dimension	6507001500
Weight	450kg	610kg	770kg
Communication	RS485/WiFi/GPRS
Environmental Parameters
Humidity	5%-85%
Working Temperature	0℃-55℃
Storage Temperature	-10℃~+55℃
Protection Level	IP20, indoor installation
Cooling Method	Forced air cooling
Noise	<60dB

Hefei VoltaNest Energy Storage Technology Co., Ltd.

VoltaNest is located in Hefei City, Anhui Province. As a global leading new energy enterprise, with over 20 years of experience in PV systems, VoltaNest Group provides high-quality energy storage products for residential, commercial, and utility applications. Our lithium iron phosphate (LFP) solar battery systems offer safe, long-lasting, and efficient energy storage.

VoltaNest has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We can provide customized services and overseas installation services according to the needs of different customers.We can provide customized products according to customer needs. ODM and OEM orders are welcome.

Our products are all packed in cartons or wooden boxes that meet international standards, and we ensure that all products can reach customers safely and quickly. We also support video inspection, which makes the whole process transparent and gives customers more peace of mind.

Our products have UL, CE, UN38.3, IEC62619, MSDS and other certifications
