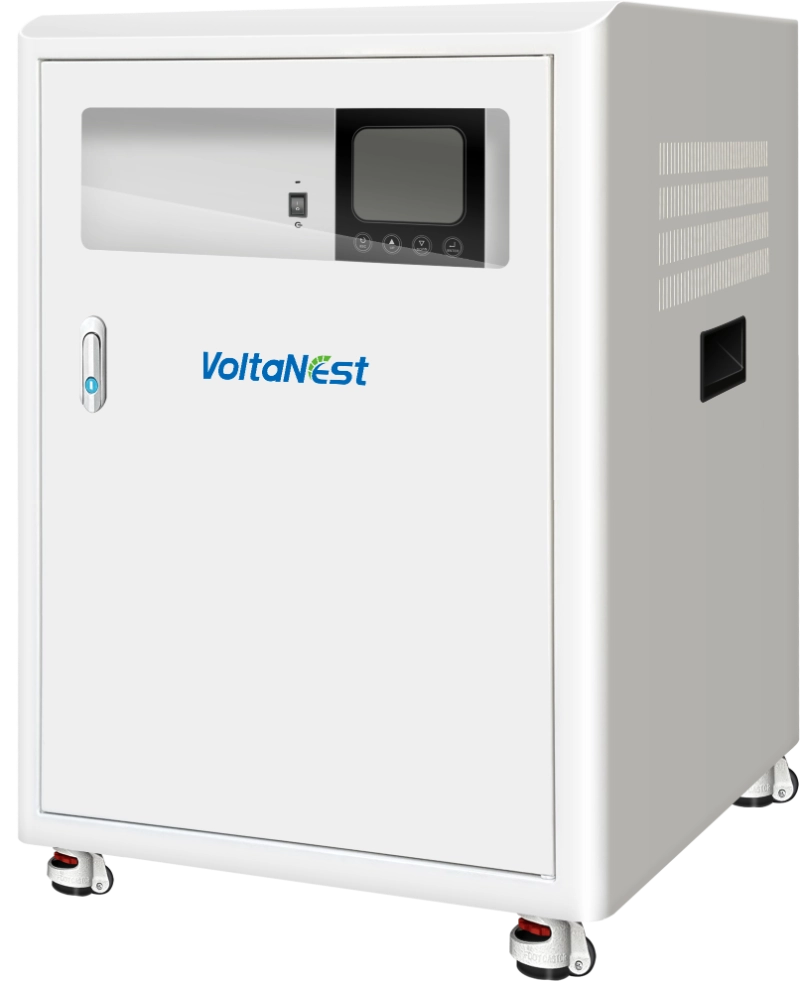

Single Phase 3.5kW 5.6kW 5kWh 10kWh 15kWh 20kWh Mobile All In One Solar Energy System

Model	VN-3.5KHP1-LM5	VN-3.5KHP1-LM10	VN-5.6KHP1-LM10	VN-5.6KHP1-LM15	VN-5.6KHP1-LM20
Battery Technical Specification
Battery Type	LiFePO4
Number of Batteries	1	2	2	3	4
Battery Energy	5.12kWh
System Energy	5.12kWh	10.24kWh	10.24kWh	15.36kWh	20.48kWh
Battery Voltage	51.2V
Battery Capacity	100Ah
Weight	45kg
Dimension（W/D/H)	440×443×143mm
Battery Rated Voltage	51.2V
Battery Working Voltage Range	44.8 ~ 56.8V
Charge/Discharge Current	50A
Max.Charge/Discharge Current	100A
Cycle Life	≥6000 ( 25℃±2℃, 0.5C / 0.5C, 80%DOD )
PV Charge
Max.PV Array Power	5000W		6000W
Rated Output Power	3500W		5600W
Max. PV Array Open Circuit Voltage	500 VDC
MPPT Range @ Operating Voltage	60Vdc – 450Vdc
MPPT Tracker Number	1
Grid Output (AC)
Nominal Output Voltage	220/230/240 VAC
Output Voltage Range	184 – 264.5 VAC or 195.5 -253 VAC (Selectable)
Nominal Output Current	8.7A		23A
Power Factor	＞ 0.99
Efficiency
Max. Conversion Efficiency (DC/AC)	95%
Off-Grid , Hybrid Operation
Acceptable Input Voltage Range	90-280 VAC or 170 -280 VAC
Frequency Range	50 Hz/60Hz (Auto Sensing)
Max. AC Input Current	30A		40A
Battery Mode Output(AC)
Nominal Output Voltage	220/230/240 VAC
Output Waveform	Pure Sine Wave
Efficiency (DC to AC)	93%
General Data
Communication	RS485/WIFI/GPRS
Charge Temperature	0～55℃
Discharge Temerature	-20℃～55℃
Operating Temperature	-10°C～ 50°C
Relative Huidity	5%~86%RH
Altitude	≤4000m
Cooling Mode	Force-Air Cooling
Ingress Protection Rating	IP20
Weight	65kg	84kg	84kg	110kg	170kg
Dimension（W/D/H)	600×650×515mm			600×650×840mm
Recommended Operation Environment	Indoor
Certification	CE/IEC/UL/UN38.3/MSDS

Hefei VoltaNest Energy Storage Technology Co., Ltd.

VoltaNest is located in Hefei City, Anhui Province. As a global leading new energy enterprise, with over 20 years of experience in PV systems, VoltaNest Group provides high-quality energy storage products for residential, commercial, and utility applications. Our lithium iron phosphate (LFP) solar battery systems offer safe, long-lasting, and efficient energy storage.

VoltaNest has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We can provide customized services and overseas installation services according to the needs of different customers.We can provide customized products according to customer needs. ODM and OEM orders are welcome.

Our products are all packed in cartons or wooden boxes that meet international standards, and we ensure that all products can reach customers safely and quickly. We also support video inspection, which makes the whole process transparent and gives customers more peace of mind.

Our products have UL, CE, UN38.3, IEC62619, MSDS and other certifications

FAQ

Q: Can you provide shipping services?
A: Yes, we can handle customs clearance and door-to-door delivery.

Q: If I have my own brand and would like custom manufacturing services, would you be able to do that?
A: We are a leading energy storage battery manufacturer in China, providing OEM/ODM services to over 58 partners worldwide.

Q: How to install and use?
A: We provide installation and operating instructions and video tutorials, and we also offer overseas installation services upon request.

Q: What if I encounter problems during use?
A: Our products come with an extended 5-10 year warranty and a lifetime free diagnostic service.

Q: Can I become a local distributor for your products?
A: We will evaluate the distributor’s capabilities and provide financial, product, and technical support.
