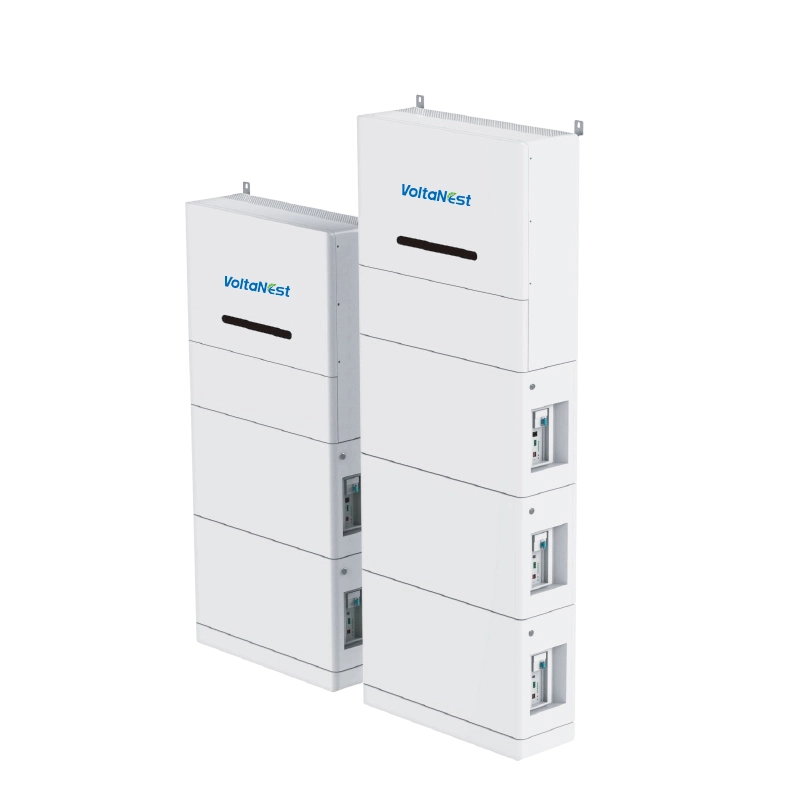

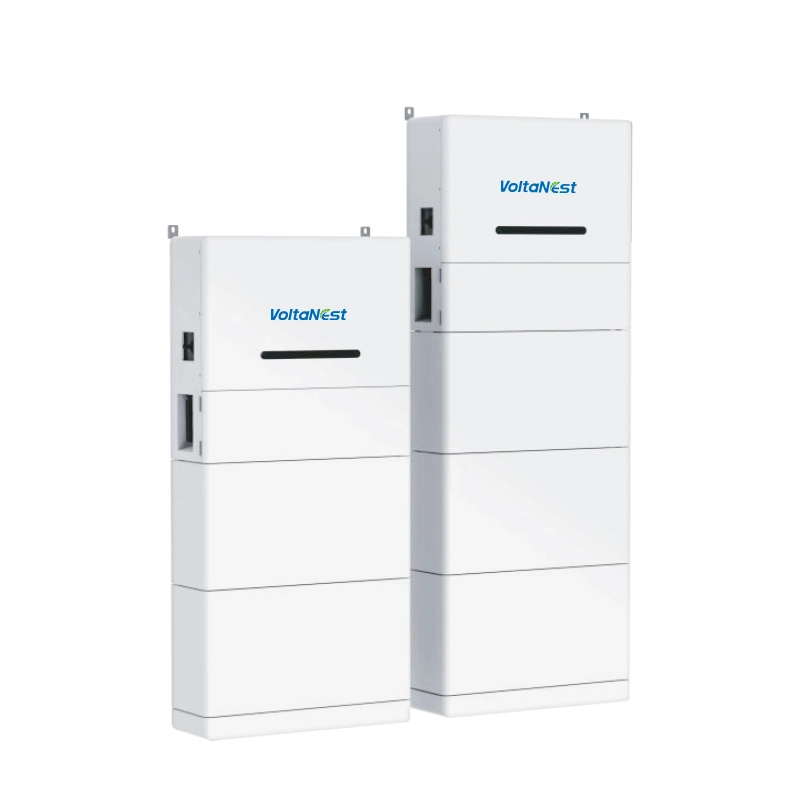

All In One ESS Single Phase 6kW Hybrid Inverter 5kWh 10kWh 15kWh Lithium Battery

Model	VN-6KHP1-SL5	VN-6KHP1-SL10	VN-6KHP1-SL15
PV Specifications
Max. PV Input Power	11000W
Nominal DC Voltage / Voc	360Vdc/600Vdc
Start-up/ Min. Operation Voltage	50Vdc/40Vdc
No. of MPPTs / Strings	2/1
Max. PV Input/ Short Circuit Current	16A/20A
Input/ Output(AC)
Max. AC Input Power from Grid	11000VA
Rated/ Max. AC Output Power	6000W/6000VA
Rated AC Output Current (at 230V)	26.1A
Max. AC Output Current	27.3A
Rated AC Voltage	220V/230V/240V
AC Voltage Range	154V~276V
Rated Grid Frequency	50Hz/60Hz
Grid Frequency Range	45~55Hz/55~65Hz
Harmonic (THD)	< 3%
Power Factor at Rated Power	> 0.99
Adjustable Power Factor	adj.0.8.overexcited/leading to 0.8 underexcited/lagging
Grid Type	Single phase
Rated Output Power for Backup Load	6000W
Frequency Range in Off Grid Mode	50Hz/60Hz(±0.5%)
Battery Data
Rate Voltage(Vdc)	51.2
Cell Combination	16S1P*1	16S1P*2	16S1P*3
Rate Capacity(AH)	100	200	300
Energy Storage(KWH)	5.12	10.24	15.36
Cycle Life	>8000 cycles @80% DOD, 0.5C
Charge Voltage	57.6V
Max. Charge/Discharge Current(A)	100
Discharge Cut-off Voltage(VDC)	43.2
Charge Cut-off Voltage(VDC)	58.4
Enviornment
Charge Temperature	0°C to 55°C@60±25% Relative Humidity
Discharge Temperature	-20°C to 55°C@60±25% Relative Humidity
Storage Temperature	-20°C to 55°C@60±25% Relative Humidity
Mechanical
IP Class	IP65
Material System	LiFePO4
Case Material	Meta
Case Type	All in One Stack
Dimension LWH(mm)	6402051008	6402051350	6402051692
Package Dimension LWH(mm)	760725345+760335450*1	760725345+760335450*2	760725345+760335450*3
Net Weight(kg)	25+46*1	25+46*2	25+46*3
Gross Weight(kg)	30+51*1	30+51*2	30+51*3
Communication
Protocol(Optional)	RS485/RS232/WLAN Optional
Certificates
System	UN38.3,MSDS,EN,IEC,NRS,G99
Cell	UN38.3,MSDS,IEC62619,CE,UL1973,UL2054

Hefei VoltaNest Energy Storage Technology Co., Ltd.

VoltaNest is located in Hefei City, Anhui Province. As a global leading new energy enterprise, with over 20 years of experience in PV systems, VoltaNest Group provides high-quality energy storage products for residential, commercial, and utility applications. Our lithium iron phosphate (LFP) solar battery systems offer safe, long-lasting, and efficient energy storage.

VoltaNest has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We can provide customized services and overseas installation services according to the needs of different customers.We can provide customized products according to customer needs. ODM and OEM orders are welcome.

Our products are all packed in cartons or wooden boxes that meet international standards, and we ensure that all products can reach customers safely and quickly. We also support video inspection, which makes the whole process transparent and gives customers more peace of mind.

Our products have UL, CE, UN38.3, IEC62619, MSDS and other certifications

FAQ

Q: Can you provide shipping services?
A: Yes, we can handle customs clearance and door-to-door delivery.

Q: If I have my own brand and would like custom manufacturing services, would you be able to do that?
A: We are a leading energy storage battery manufacturer in China, providing OEM/ODM services to over 58 partners worldwide.

Q: How to install and use?
A: We provide installation and operating instructions and video tutorials, and we also offer overseas installation services upon request.

Q: What if I encounter problems during use?
A: Our products come with an extended 5-10 year warranty and a lifetime free diagnostic service.

Q: Can I become a local distributor for your products?
